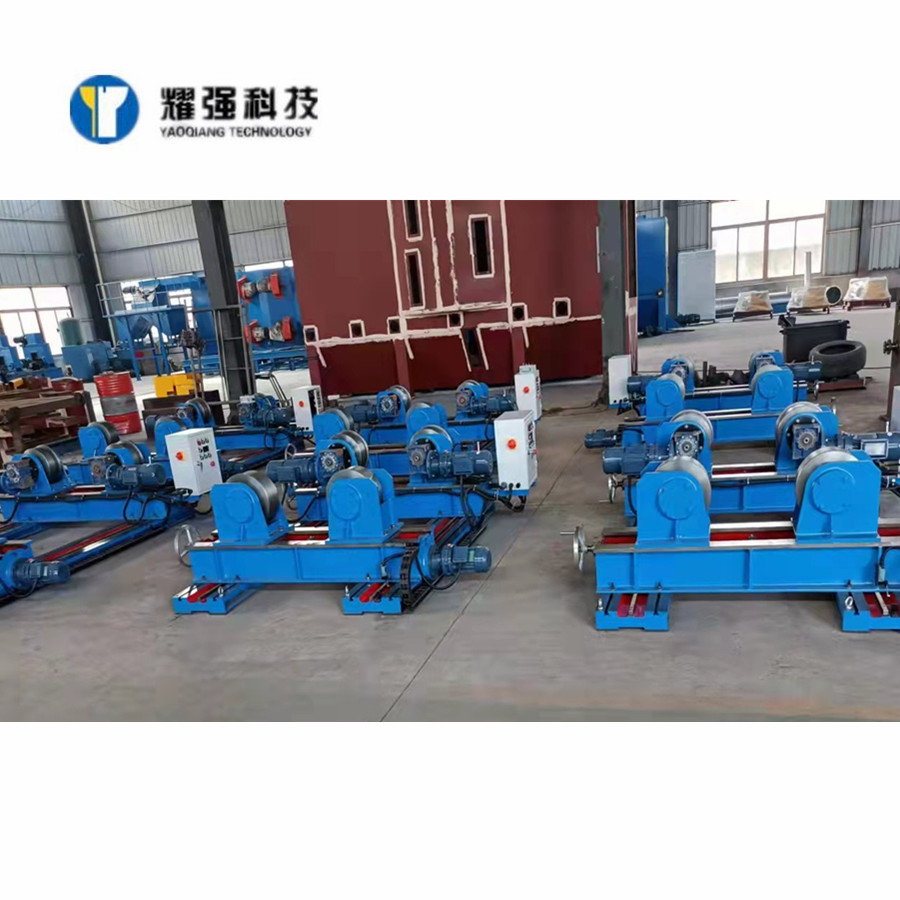

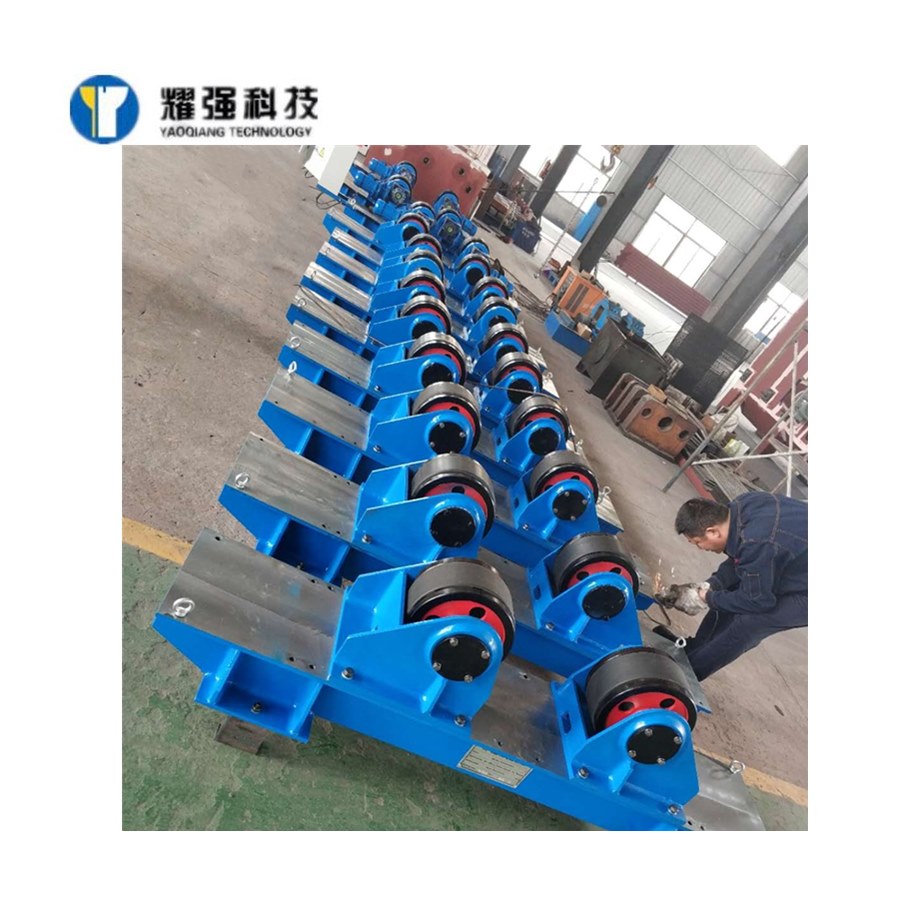

HGK-10 PU Wheels Adjustable Pipe Rotator Welding Rotator Turning Rolls
Our company is specialized in the design of irregular parts and special products, widely used in shipbuilding, chemical, petrochemical, construction, boiler and nuclear power and other industries.
HGK-10 Adjustable welding rotator:
| No. | Item | Unit | Specification |
| 1 | Equipment structure type | | Adjustable fixing screw |
| 2 | Maximum load of equipment | KG | 10000 |
| 3 | Applicable workpiece range | MM | 300-2800 |
| 4 | Roller diameter | MM | 300*120 |
| 5 | Roller linear speed | MM/MIN | 100-1000 |
| 5 | Matching motor power | KW | 2*0.55 |
| 6 | Wheel speed regulation method | | Frequency |
| 7 | Control line length | M | 10 |
Control section:
The electrical control system of this equipment is a control method that integrates all equipment, mainly composed of two parts: an electric control cabinet and a remote control box.
1. There are two control boards in the electric control cabinet. One is the contactor control board, which is composed of fuses, control transformers, contactors and terminals; this part mainly controls the on and off of each motor, realizes the actions of each part and performs necessary protection for the motor. The other board, mainly composed of frequency converters, is mainly used to control, adjust speed and protect the horizontal arm telescopic motor. There are components on the panel of the electric control cabinet: cross arm speed digital display, cross arm speed preset, power indicator, power switch button, cross arm lifting button, inverter alarm indication and alarm clear button.
2. The operation panel of the remote control box is equipped with power indicator light, cross arm telescopic switch, cross adjustment mechanism fine-tuning button, welding start, welding stop button and other components, which can complete the main actions of each part of the equipment at a long distance and control the start and start of welding. stop.
3. Through the electric control box and remote control box, each mechanism of the device can be operated individually, and various parameters can be manually adjusted according to the situation.
4. It can realize the linkage control with the welding system.
Main scope of supply:
| No. | Name | Qty | Consists |
| 1 | HGK-10 adjustable welding rotator | 1 | Install the base, drive the deceleration parts, rotate the roller parts, etc. |
| 2 | Random documents | 1 | Product instruction manual, inverter operation manual, certificate of conformity, delivery list, electrical schematic diagram, etc. |
FAQ:
1.Q:Are you a factory or trading company?
A: We are a factory.
2. Q:What are your payment terms?
A: We support T/T, L/C, Western Union and so on. Other ways can also be received after we both sides discussion and agreement. Any other questions contact us directly!
3. Q:How about the warranty?
A: There are 12 months for the warranty.
While the warranty is not responsible for those broken by violence
4.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Jiangsu Wuxi(next to Shanghai),China.You can fly to Shanghai airport directly.All our clients, from home or abroad, are warmly welcome to visit us!
