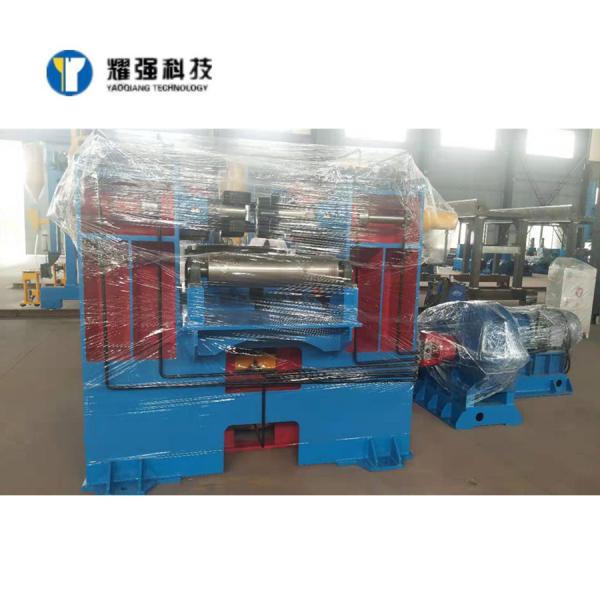

40mm Q345 H Beam Straightening Machine HYJ-600

Name: 40mm Q345 H Beam Straightening Machine HYJ600
Brand: YAOQIANG
Price: 1 USD

Quality 40mm Q345 H Beam Straightening Machine HYJ-600 wholesale

Brand Name : YAOQIANG

Model Number : YJ-800

Certification : CE ISO

Place of Origin : Jiangsu,China

MOQ : 1 SET

Price : US $5,000-40,000/ Piece

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10pcs/month

Delivery Time : 20 days

Packaging Details : standard packing

Model : HYJ-600

Warranty : 1 year

Total motor power : 10KW

Equipment structure types : Stationary

Straightening mode : Mechanical

Max thickness of flange : 40mm

Function : H beam flange straightening

Electrical system : Cabinet control

Contact Now

40mm Thickness Automatic H-Beam Mechanical Flange Straightening Machine

This machine is specially used for forming H-shaped steel flanges after welding. It has the characteristics of simple structure, convenient operation, fast speed, high efficiency, and reliable work.

There are two types of tightening options, mechanical and hydraulic.

Specs:

Model	YJZ-60B	YJZ-800	YJZ-80B
flange thickness mm	≤60	≤40	≤80
flange material tension	≤600Mpa	≤600Mpa	≤600Mpa
flange width mm	180-800	200-1000	200-1000
web height mm	≥350	≥350	≥500
straightening speed m/min	6.4	6.4	6.56
loading power kw	37	27.5	28
material type	Q345	Q345	Q345

40mm Q345 H Beam Straightening Machine HYJ-600

Scope of supply and component unit :
Correction machines host including: Base, about the frame, motor, gear reducer, correction wheel, pressure roller, guide roller, etc.
Input/output roller bed including: Input/output roller bed each 2.6 * 4 meters.
Electronic assembly including: Electric cabinet, operation box and accessories.
Spare parts including: 1 set
